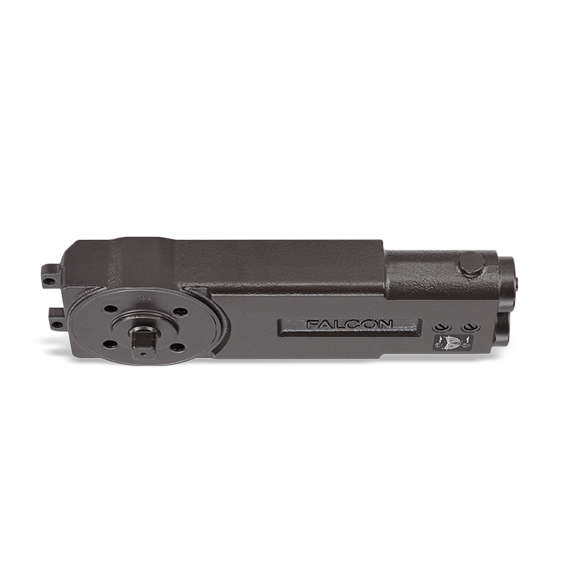

Falcon OHC100 Series Cast Iron Door Closer

The Falcon OHC100 Series Cast Iron Door Closer fits inside a standard aluminum frame header and the cast iron construction provides enhanced security. It offers 2 size options and matches the Jackson hole pattern for easy retrofit. It is designed for interior and exterior use with aluminum doors and frames. It is ideal for retail installations, restaurants, libraries, offices and medical clinics.

The OHC100 Series has a cast iron body and fits inside a standard aluminum frame header. Its use with aluminum frames and doors makes for maintenance-free performance. The series is UL10C fire rated, meets the American Disabilities Act (ADA) compliance and meets ANSI A117.1. The OHC100 Series also comes with a 5-year warranty.

The Falcon OHC100 Series Cast Iron Door Closer includes the following features:

Body construction
Cast iron design
90° and 105° standard opening with optional hold-open
Fits inside the standard aluminum frame header

Quality and durability
5-year warranty
Maintenance-free performance
Hold-open option available

Installation
Matches the Jackson hole pattern for retrofitting
Used with aluminum frames and doors
Adjustable spring sizes
OHC100 adjustable sizes 1-3
OHC101 adjustable sizes 3-5

Specifications
UL10C fire rated (OHC100 and OHC101 Series without hold-open)
Meets ADA compliance (OHC100 Series)
Meets ANSI A117.1 (OHC101 Series)
