Discover the enhanced 4040XP – LCN’s most durable heavy-duty door closer designed for most demanding applications is now outfitted with enhancements that simplify installation and maintenance. LCN 4040XP Heavy Duty Door Closer meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.

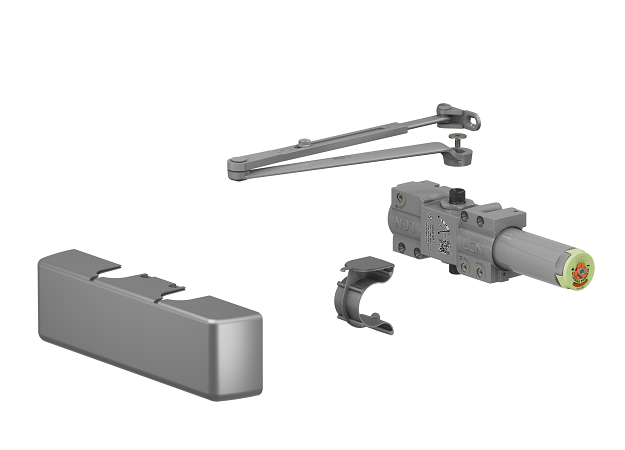

The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
It’s clear that the facility management workforce is changing. And with that brings challenges related to recruiting staff and training them—leaving you less time to focus on door hardware. So, LCN has taken their most popular door closer – the LCN 4040XP and outfitted it with features that simplify installation and maintenance!
Added to the LCN 4040XP are several enhanced features that make installation and adjustment of the 4040XP easier and more intuitive. No internal design changes – the closer retains the same performance, door prep and certifications. The external-only enhancements mean installers will benefit from reduced maintenance and an improved customer experience.
Specifications
- Non-sized cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
- Meets ADA requirements
- UL and cUL listed for self-closing doors without hold-open
- Tested and certified under ANSI/BHMA A156.4 Grade 1
- 4040XP may be used with all 4040 accessories
- Non-handed, non-sized, delayed action and accessibility options available
Features & Benefits
- Enhancements
- Unique casting shape/logo
- Snap-on cover
- Updated Green Dial
- Patent-pending positive stop
- Patent-pending regulation valve indicators
- Graphic visuals and indicators
- QR code for tech support
- Packaging that clearly labels the parallel arm (PA) selector valve
Installation and Adjustment
- Tight tolerances in manufacturing for accuracy and precision
- Peel-n-stick template for quick and accurate installation
- Updated! LCN Green Dial to take the guesswork out of spring power adjustments
- New! Patent-pending positive stop to improve staking and prevent the screw from being backed out
- New! Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
- New! Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent
Quality and Durability
- Cast iron cylinder for rugged performance, longer life and maximum control
- Single-piece, heat-treated forged steel arms to withstand bending and breaking
- Heat-treated 1-1/2" diameter piston for extra hardiness and strength
- Double heat-treated steel pinion with 11/16” journal diameter for greater wear-resistance
- Full complement bearings with minimum 0.5” height that wear more evenly and are less susceptible to leakage
- All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
- Independent speed adjustments for greater door control
- Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
- Updated! Redesigned snap-fit cover with patent-pending retention fit
- Powder coat finish that lasts longer than spray lacquer
- 30-year warranty
Flexibility
- Universal non-handed design that enables it to fit more applications with a single product
- Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
- Adjustable spring sizes 1-6
Installation
- Universal non-handed
- Peel-n-stick template and snap-on cover
- Adjustable spring sizes 1-6
Common Applications
- Schools
- Hospitals
- Commercial Buildings
- Government Buildings
Finishes
- Powder Coat Finishes
- Matte Black
- Aluminum
- Statuary Bronze
- Light Bronze
- Black
- Dark Bronze
- Brass
- 150+ additional custom colors available using the RAL numbering system
Metal Plated Finishes
- Bright Brass
- Satin Brass
- Satin Bronze
- Satin Bronze, Blackened
- Satin Nickel
- Bright Chrome
- Satin Chrome
