Light Duty Stave Core Veneer / Hardboard / Prefinished Door (20 Min/Non Fire-Rated)

Features:

  • Maximum size for single door opening (non-rated) is 4’0″ x 10’0″ (1219mm x 3048mm), double egrees double opening 8’0″ x 10’0″ (2438mm x 3048mm) Maximum size for single door opening and door/transom (20 Min. fire rated) is 4’0″ x 10’0″ (1219mm x 3048mm), double opening (dependent on hardware) 8’0″ x 10’0″ (2438mm x 3048mm)
  • For 1 3/8″ (35mm, non-rated only), or 1 3/4″ (44mm, rated and non-rated) door thicknesses

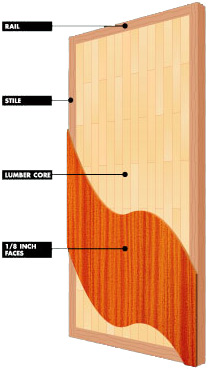

  • Stiles consist of clear or fingerjointed
  • Rails consist of mill option wood, hardwood rails compatible with face veneer available upon request
  • Pregraded faces, hardboard, or premium 2-, 3-, or 4-ply veneered skins (minimum 1/60″ veneer before sanding).  Veneers available in a wide variety of species and cuts
  • Complete range of machining capabilities and detailing available
  • Special inner blocking options may be specified for hardware reinforcement or light cutouts
  • Cutout area may not exceed 40% of the face or half of the door height to comply with the warranty. For 20 minute-rated doors, the total visible area of single or multiple lights may not exceed 1,296 sq. in. per leaf, with a maximum width of 36″, or a maximum height of 54″. All cutouts must be 6″ from the edge of the door or any other cutouts and/or hardware preps. Louvres are not allowed in 20 minute doors.
  • All doors meet or exceed N.W.W.D.A., I.S.1 and C.S.A. standards
