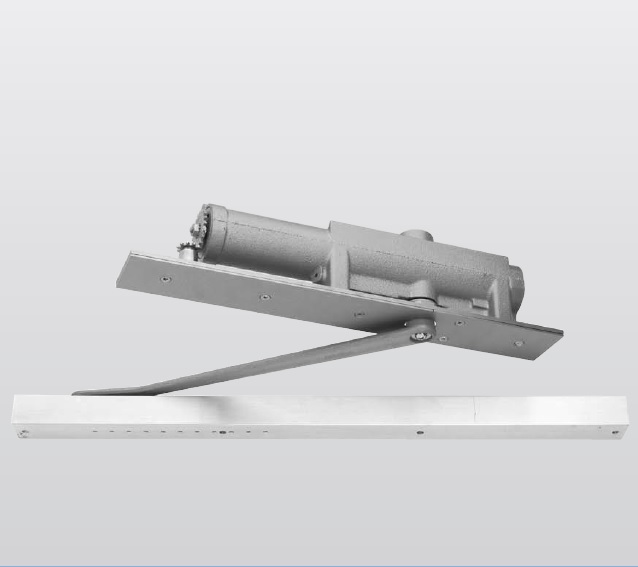

Sargent 268 Series Overhead Door Closer

With its arm, track and closer completely concealed when the door is closed, the Sargent 268 Series Overhead Door Closer provides a high degree of resistance to abuse in addition to a sleek aesthetic, making it ideal for heavy-duty interior applications and high-end architectural openings. The Sargent 268 Series Overhead Door Closer provides security and aesthetics by completely hiding the door closer, track and arm in the door and frame.

Features and Benefits:

Strength & Durability
• Conforms with Standard UL 10C for positive pressure fire test
• UL and cUL listed for use on fire doors
• 10 Year warranty
• One piece cast iron body 1-1/2″ dia. piston for superior door control
• Heat treated spindle and piston for years of reliable service
• Captivated brass valves provide easy door control while preventing accidental valve removal

Aesthetics & Flexibility
• Powder coated and plated finishes available to match SARGENT door trim
• Concealed track, arm and closer
• Closing force adjustable through a range of BHMA sizes
• Optional hold open and bumper features available
• All-weather fluid allows closer to operate properly in extreme cold and hot environments without readjustment

Security
• Heavy duty forged steel arm
• Concealed in-frame design inhibits possible tampering
• Security screws available
• Concealed door position switch available
• Pressure relief valves allow closer to absorb abusive forces, preventing damage to doors and frames
