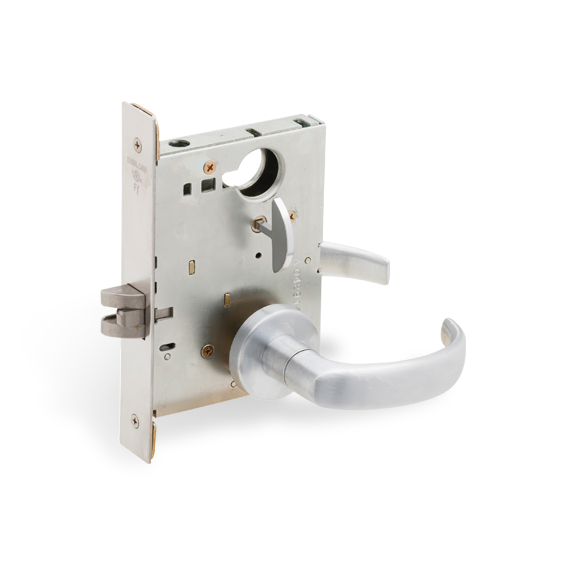

Schlage L Series Electrified Mortise Lock

The Schlage L Series Electrified Mortise Lock has long been the benchmark for mortise locks. The L Series Electrified Mortise Lock offers tremendous flexibility which allows it to meet the needs of most every wired application. It features universal input voltage and auto-detects 12 through 24 VDC for installation flexibility. Users can select mode of operation in the field by moving switch on lock chassis; Fail Safe (EL) or Fail Secure (EU).

All new modular RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity; it can be added at a later time without opening the lock case. Low maximum current draw of 0.4 amps (230 mA) allows multiple locks on a single power supply. Additionally, a holding current of 0.01 amps (10 mA) produces minimal heat, eliminating hot levers in electrically locking applications and allows for reliable operation in poorly ventilated wood doors.


  • Exceeds ANSI/BHMA Grade 1 standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers
  • Function availability and compatibility
  • Six electrified functions auto-detect 12/24V DC operation
  • A maximum current draws of 0.4 amps and a holding current of 0.01 amps eliminates heated levers and allows for multiple locks on a power supply
  • Modular RX kit allows request-to-exit to be added to the lock at any time
  • Field-selectable fail safe and fail secure by moving a switch on lock chassis


  • 31 lever, five rose and two escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

  • Vandlgard® free-wheeling outside trim option is available on most functions
  • Request to Exit (RX)
  • Latchbolt Monitor (LX)
  • Door Position Sensor (DPS) – non-deadbolt functions only
  • Deadbolt Monitor (DM) – deadbolt functions only.
