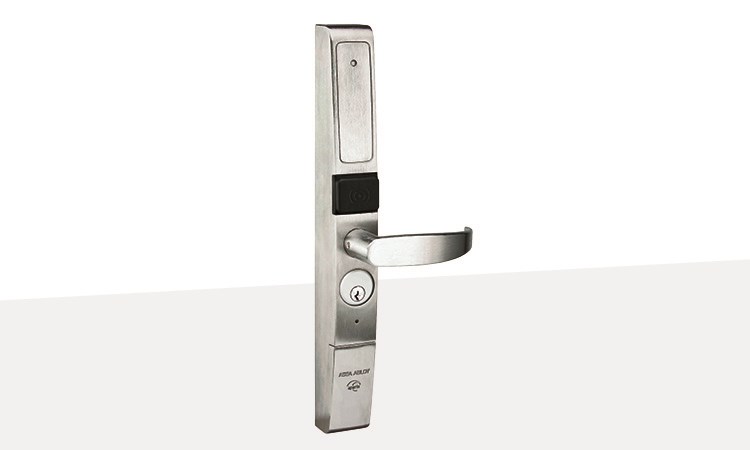

A100-3090H Keyless Entry Controls and Aperio® Hub
The A100-3090H Keyless Entry Controls for Adams Rite deadlocks, deadlatches and exit devices provide wireless security with HID® Prox or iCLASS contactless card reader that can be integrated into existing access control systems.
Function:
The A100-3090H Keyless Entry Controls and Aperio Hub is a wireless keyless entry trim for Adams Rite deadlocks, deadlatches and exit devices. Ideal for both exterior and interior aluminum and hollow metal door applications. The A100-3090H provides maximum security and audit trail with either an HID® Prox or iCLASS contactless card reader for easy integration with existing credential systems to accommodate flexible user access management.
Operation:
When an authorized card is presented, an audible beep and visual change in the red/green LED indicator confirms authorization. A high-speed motor engages an internal clutch to enable the exterior lever operation. When released, lever returns to horizontal. Clutching action prevents damage to internal components. Upon timeout, the lever operation is disabled until the next authorized card presentation or key override. The MS Deadlocks must always be relocked manually when used with the A100-3090H Keyless Entry Trim. A100-3090H accepts any standard mortise cylinder with MS® cam, available separately.
Certifications:
FCC Compliant
Features:
- Aperio wireless technology
- Surface mounted with concealed fasteners. Suitable for 1-3/4″ to 2-1/4″ [44.5 mm to 57.2 mm] door thickness
- Key override via mortise cylinder; 1”to 1-1/2” [25.4 mm to 38.1 mm] length with MS® cam (available separately)
- Audit trail limited by EAC
- Monitoring: Request to Exit, available separately; door position; tamper.
Specifications:
Wireless Access Control: Minimal field configuration for quick, easy wireless deployments that eliminate the cost and inconvenience of hardwiring the door. Fully-encrypted AES 128 bit wireless communication between the A100 lock andAperio® hub ensures data security. The Aperio® wireless hub connects to an access control system with typical Wiegand wiring and additional REX, DPS, tamper and low battery signal wires. The Aperio® hub should be mounted within 50’ of the desired lock location and through two walls or less.
Housing: Measures 1-3/4″ [44.5 mm] wide x 15-3/8″ [390.5 mm] high.
Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing.
Operating Temperatures: Full outdoor rating; Temperature range from -31 to +151F [-35 to +66C] and 5 to 95% humidity (non-condensing)
Standard Package: Individually boxed with wireless hub and mounting hardware for 1-3/4″ [44.5 mm] to 2-1/4″ [57.2 mm] door thickness.
Shipping weight: 6 lbs [2.72 kg]
Electrical:
- Powered by 4 AA alkaline batteries with low battery indication
- Integrated HID® 13.56 MHz iCLASS reader supports credentials*: HID iCLASS® (ISO 15693)
- Integrated HID® 125 KHz Prox contactless card reader supports credentials*: HID Prox
*For information on migrating from one card technology to another or dual-technology card support, please contact 800-810-WIRE
Options:
- DPS switch (DPS-C-38G)
- Available in choice of powder coat 121 to match 313 Dark bronze anodized, or US26D (626) Satin chrome.
Product Note: The Adams Rite A100 narrow stile trim is available as either a pre-paired lock and hub kit (no certification required) or as a field configurable component (requires Aperio® Certified Integrator certification). Pre-paired kits support limited features, field configured devices are required in order to support all options.
