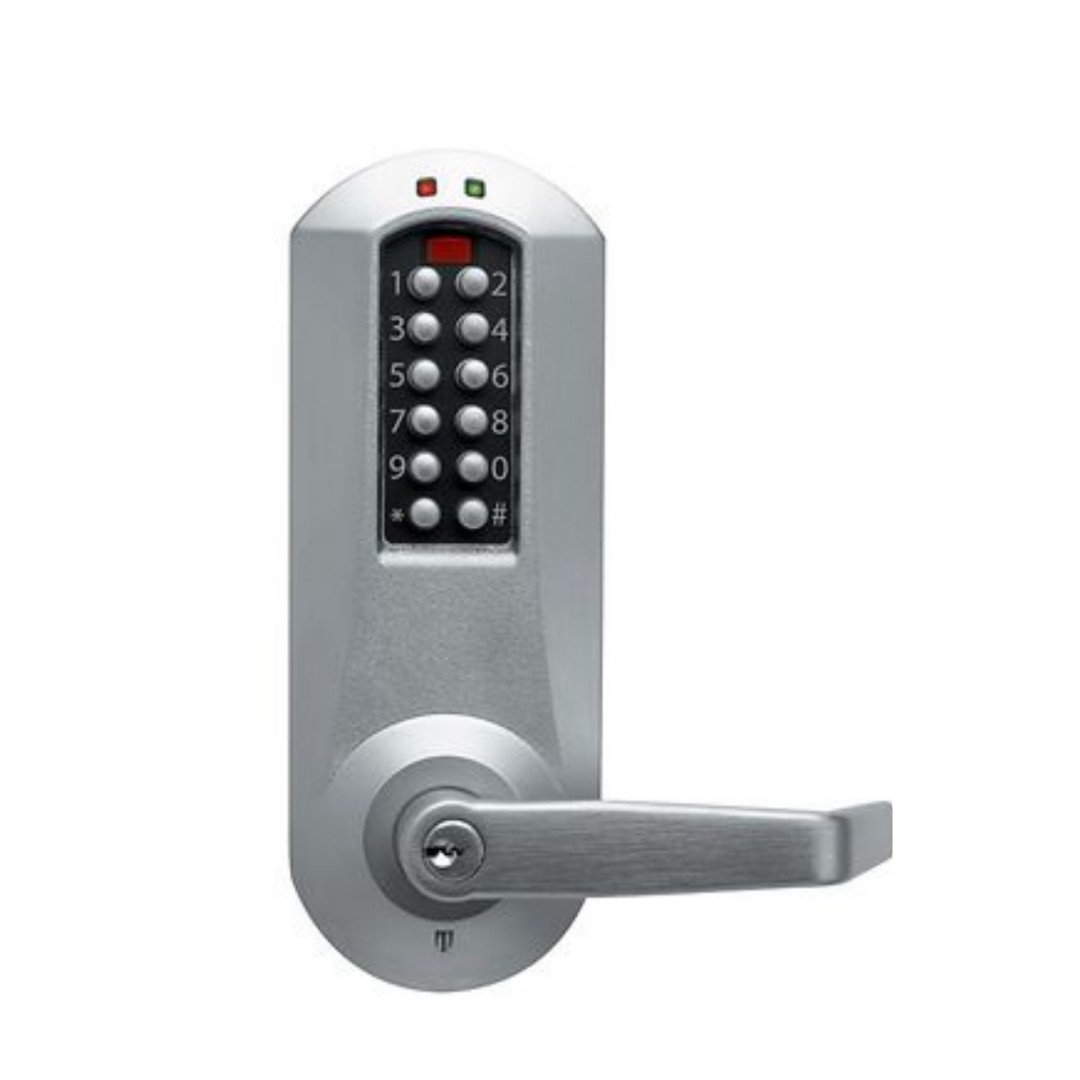

Dormakaba E-Plex 5200 Electronic Pushbutton Lock Series

Features

No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks

Locking Device Options:

Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating

Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)

American Standard Mortise: With 1″ (25 mm) and 1¼” (32 mm) face plate; with and without deadbolt

Number of Codes: Multiple Users—3,000 Codes

Audit Capability: 30,000 Events

Programming: Locks are programmed via E-Plex Enterprise Software (not included)—provides easy management of doors and users

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override: Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores

Scheduling:

Access schedules—up to 16 different access schedules may be programmed into lock

Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock

Operation Modes:

PIN access

Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours

Lockout

Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or “come-and-go” access for 1 to 24 hours

User Parameters:

Code length—adjustable to accept 4 to 8 digits

Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds

Re-lock time—adjustable from 2 to 20 seconds

Technical data

Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field

Backset:

Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset

Mortise: 2¾” (70 mm) backset

Exit Trim Model: Varies by Exit Device

Latches:

Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)

Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)

Additional Configurations:

Stand-Alone Access Controller – view product specifications

Entry/Exit – download specification sheet

Exit Device: Not supplied (see list above for compatibility)

Exit Device Latch: Supplied with Exit Device

Exit Device Hub Rotation: Up to 60º

Minimum Stile Required: 5″ (127 mm)

Key Override: Find a list of compatible key overrides in the Electronic Lock pricebook

Standard Finishes:

Satin Chrome 26D (626) housings and levers

Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes:

Bright Brass 03 (605) housings and levers

Satin Brass 04 (606) housings and levers

Bright Chrome 026 (625) housings and levers

Dark Bronze 744 with brass accents

Door Thickness: Cylindrical Model: 1⅜” (35 mm) to 2¼” (57 mm); pre-assembled to accommodate doors 1⅝” (41 mm) to 2″ (51 mm); hardware kits included for thin and thick doors

Exit Trim and Mortise Models: 1¾” (44 mm) to 2¼” (57 mm). Pre-assembled to accommodate doors 1¾” (44 mm) to 2⅛” (54 mm).

Fire Rating: 3-hour, UL/ULC fire door rating for “A” labeled doors

Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)

Environmental: Indoor/Outdoor Approved

Front Housing: -31 °F (-35 °C) to 151 °F (66 °C)

Rear Housing: -31 °F (-35 °C) to 130 °F (55 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory.
