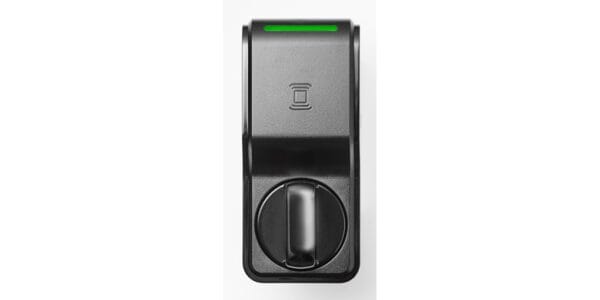

HES K100 Wireless Cabinet Lock

The flexible integrated solution for extending access control to secure locker drawers and doors.

The HES K100 cabinet lock comes standard with locked state & tamper monitoring, optional mechanical key override and over 150 lbs of holding force.

The HES K100 supports HID multiCLASS SE® contactless credentials. It uses local wireless communication between the lock and an Aperio hub to bring access control to cabinet doors and drawers where audit trail and real-time monitoring are required.



FCC Part 15 & Industry Canada Compliant

CE RED – Radio Equipment Directive – 2014/53/EU

RoHS Compliant


Estimated Battery Life: 50,000 Cycles

(2) “AA” lithium batteries (included)

AA Lithium Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life.

Battery voltage monitoring

microUSB port for emergency power

Holding Force:

Static strength 150 lbs


Operating Temperature: 32 to 122 F (0 to 50 C)

Tested to meet IP65

Card Technology: HID® multiCLASS SE®

High Frequency (13.56 MHz)


–   HID iCLASS SE (SIO-enabled)

–   HID iCLASS® Seos™


–   HID DESFire® EV1 SE


–   DESFire® EV1

Low Frequency (125 kHz)

–   HID Prox®

–   AWID

–   EM4102

–   ioProx

NFC/BLE-enabled credentials (supported on BLE-enabled mobile phones)

Standard Features

For use with swinging and sliding cabinet doors and drawers with a door thickness of up to 2-1/4”

2.4 GHz Aperio wireless technology

Supports HID multiCLASS SE® card technologies

Supports NFC & BLE mobile credentials

Integrates with existing access control systems and ID badges

Audit trail limited by EAC system

LEDs indicate valid/invalid entries; Red/Amber or Green/Amber

Integrated locked state and tamper monitoring

Automatic relock when door is closed and secure


Black finish

(3) optional shaft lengths to accommodate up to 2-1/4” door thickness

SecuriCare three-year, no-fault, no questions asked warrant

Optional Features

Mechanical key override (sold separately)

Pinch (P) or Lever (L) Knobs

Knob shaft lengths:

(_)1/16” to 1/2” (standard)

(2) ≥ 1/2” to 1-1/2”

(3) ≥ 1-1/2” to 2-1/4”


OBS-622 Open back strike plate for drawers

EXT-10-ANT Aperio Hub External Antenna (Omni-directional)

Note: The HES K100 cabinet lock is available as either a pre-paired lock and hub kit (no certification required) or as a field configurable component (requires Aperio® Certified Integrator certification).
