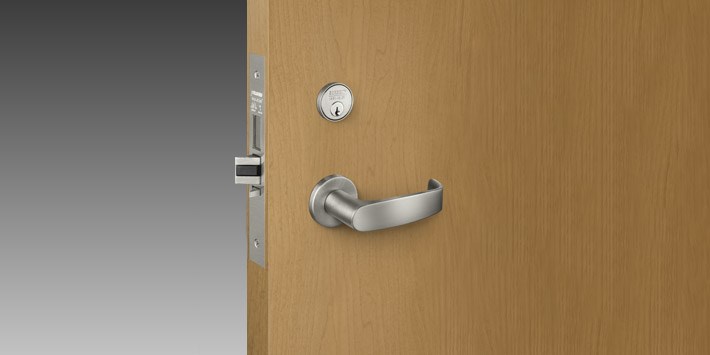

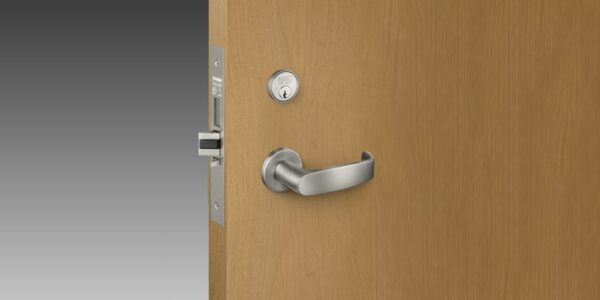

Sargent 92000/M-9200 Series High Security Mortise Locks

Physical Security

High Security Mortise Locks and Institutional SARGENT® Mortise Locks are designed specifically for the commercial and institutional marketplace.  Sargent 9200/M 9200 series is well-suited for exposed perimeter doors in commercial facilities and its universal, non-handed curved lip strike allows for increased functionality and added versatility. High quality components provide high security, optimum performance and exceptional durability. The 9200 Locks are also available as electromechanical locks in fail safe or fail secure versions. These solenoid operated locks are available with a 12 or 24 volt solenoid and are designed for intermittent and/or continuous duty. Full wave bridge rectification is factory installed, enabling the use of AC or DC power.

Features of the 9200/M-9200 High Security Mortise Locks:

  • Stainless Steel 3/4″ one-piece anti-friction latchbolt with hardened alloy steel latchbolt rod
  • Reversible non-handed lock
  • Stainless Steel non-handed deadlatch
  • Hardened Stainless Steel 1″ throw investment cast deadbolt
  • 12 gauge heavy duty wrought steel case and cap with ZCR plating
  • Cold forged hardened alloy steel hubs standard
  • Inside front full 1/8″ hardened high carbon steel
  • All exposed screws are Torx® Security type for SN, SL and LS trims. (Torx® available for other trims, specify 36-option)
  • Meets ANSI/BHMA A156.13 Series 1000 Operational Grade 1
  • Meets ANSI/BHMA A156.13 Series 1000 Security Grade 1 with all standard trims Note: LFIC (Removable) and SFIC Cylinders do not meet Security Grade 1 requirements
  • Complies with ASTM F1577-95b Detention Locks for Swinging Doors
  • Complies with ANSI/ASTM F476-84 Grade 40 with concealed mortise cylinder
  • Meets UL and CUL Standard 10C Positive Pressure, Fire Test of Door Assemblies; 3 hour for single doors up to 4’0″ x 10’0″ and ASTM F1577-95b Paragraph 6.3
  • Levers meet A117.1 Accessibility Code -ADA
  • Easy operation; 30° of rotation to retract latchbolt
  • Meets UL 437 for high security cylinders with ASSA V-10 and ASSA V-10 Mogul cylinders only
  • Ten year limited warranty.
