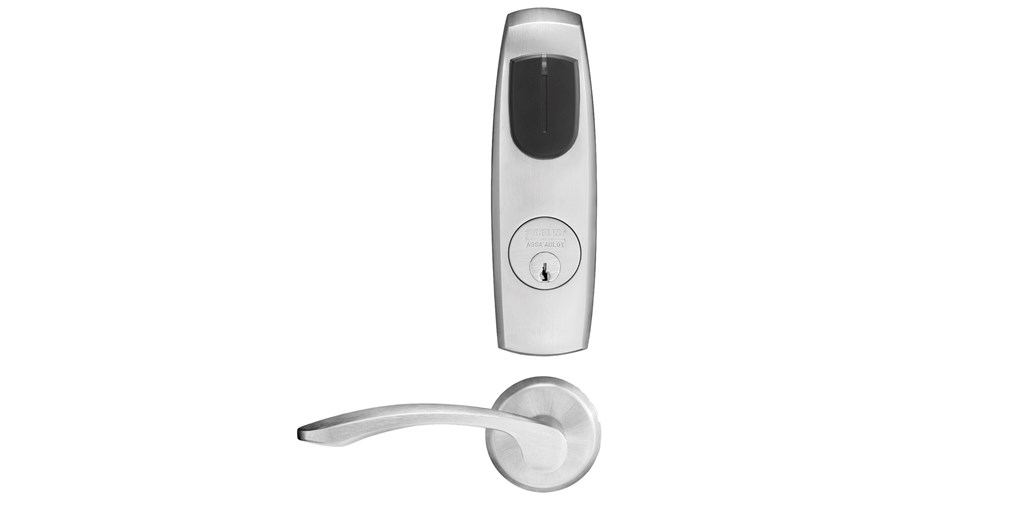

Sargent Harmony® Series Online Integrated Wiegand Access Control Solution

Designed to blend flawlessly into any environment, the Harmony Series includes all standard access control components, including card reader and monitoring capabilities, in a small, streamlined lock for the perfect balance of architectural style and facility security. Harmony locks features direct Wiegand output and integrate easily with all popular access control systems.

The SARGENT Harmony Series locks are available in cylindrical, mortise, multi-point, and exit device configurations.

OVERVIEW

Reduces installation time while maintaining architectural integrity

Streamline installation with only one required cable

Provide added security with enhanced monitoring capabilities

Sophisticated Wiegand solution. Big features in a small, well-styled lock. Card reader, monitoring capabilities and SARGENT ANSI/BHMA Grade 1 hardware with direct Wiegand output are beautifully presented in the Harmony Series. Designed to blend into any environment flawlessly, Harmony is in tune with the aesthetic needs of the architect, and provides high security for the facility manager. With all components consolidated into the lock, installation time is reduced significantly compared to traditional access control installations.

Features & Benefits

Elegant design incorporates all access control components, including:

card reader, door position switch, and request to exit monitoring sensors

  • Streamlined appearance blends seamlessly into any environment and maintains architectural integrity around the door; significantly reduces installation time

Open architecture platform

  • Compatibility with all popular access control systems

Integrated ANSI/BHMA Grade 1 hardware, available in: 10 Line Cylindrical Lock, 8200 Series Mortise Lock, 80 Series Exit Device, 7000 Series Multi-Point Vertical Rod, and FM7300 Series Multi-Point Lock

  • Flexibility to support a variety of openings; industry leading Grade 1

hardware offers the highest degree of physical security available in access

control locks

Direct Wiegand output

  • Eliminates the need for an interface panel

Supports industry leading credentials:

HID 125KHz PROX

HID 13.56 MHz iCLASS SE

PIV/PIV-I (64-bit BCD, 128-bit BCD or 200-bit output)

  • Easy integration with existing credential systems. iCLASS SE provides heightened security and simultaneous support for multiple high frequency credentials and mobile access. Extend the use of your PIV credentials for controlled access throughout your building

Lockdown capable

  • Ability to secure areas immediately from central security system

Secure-side electronics

  • Increased security and reduced risk of vandalism

Provided with pre-terminated ElectroLynx® connectors

  • Reduced installation time and costs; improved reliability

Weatherseal gasket and conduit included. Shroud available

  • Can be used on a variety of exterior doors

Available with 56- Electric Latch Retraction with pull trim

  • Ideal for exterior openings in high abuse areas

Available with integrated magnetic door position switch (IDP) (patent pending)

  • Enhanced monitoring capabilities provide added assurance that

the door is secure

Mortise locks feature EcoFlex® technology

  • Reduces energy consumption up to 96%, as certified by GreenCircle
  • Field configurable to fail-safe or fail-secure
  • Operates from 12-24VDC, offering greater flexibility in system design
  • Innovative actuator design provides superior reliability.
