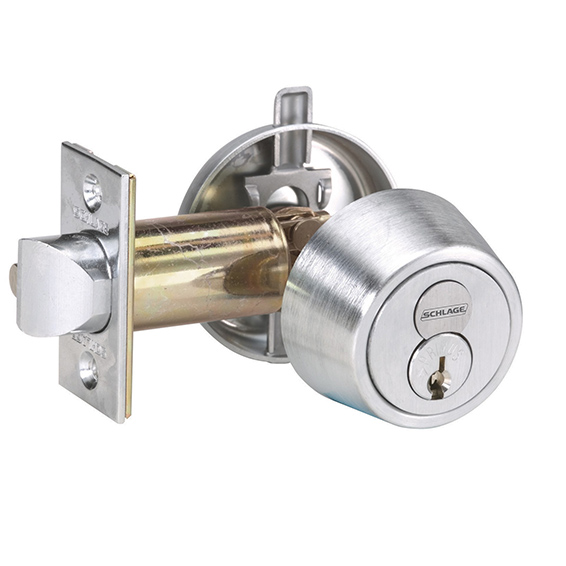

Ideally suited for pool, apartment and condominium gates, utility panels and pipe chases, the Schlage B250 Series Grade 2 Deadlatch is tough, reliable and has a proven design that has been the industry standard for decades. The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where re-locking is essential to security. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch. The B250 Series Grade 2 Deadlatch is offered has a selection of three styles and 7 finishes to meet you needs, while ensuring a consistent look across doors and throughout your building.

Strength and security

  • 5/8″ throw deadlatch resists prying attacks and “shimming” of the latch
  • Concealed frame reinforcer protects wood jamb against kick-in attacks
  • Free spinning, tapered cylinder collar with security insert resists wrenching and prying
  • Thumbturn “holdback” feature retains the deadlatch in a retracted position when desired
  • UL 437 listed option resists drilling and physical attack on the cylinder

Key System Security

  • Open and restricted keyway options
  • Primus XP program geographic exclusivity
  • Factory master keying available
  • Orderable in two cylinder formats: Conventional and FSIC

Functional and aesthetic options

  • Functions include single and double cylinder options
  • 7 finish options


Product Downloads:
Schlage B Series Catalogue
