Features:
Locking Device:
Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes:
Single access code—one easy-to-manage code for all users
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
Factory-handed for left-hand doors; easily field reversible
Operation Modes:
Pushbutton Access
Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
Economical:
A cost effective access control solution
Optional Features:
Key Override:
Allows entry by key. Small format and large format interchangeable core options available
Passage: Allows access without using the lock entry combination. Feature activated from the inside with a thumbturn or key (included with all passage feature models)
Back to Back Lock:
Keypad on internal and external side of the door. Access combination required for entry and exit.
Technical Data:
Construction:

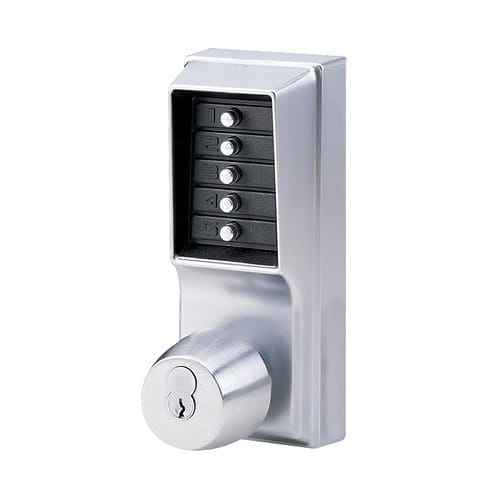

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate
Cast knobs
Numeric Keypad:
Vandal resistant
Solid metal pushbuttons
Handing:
Factory-handed for left-hand doors
Easily field reversible
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended: 5" (127 mm)
Strike:
Standard strike plate
ASA strike plate
Key Override:
Interchangeable Cores:
Small format—Best and equivalents (6 or 7-pin length)
Core not included
Removable Cores:
Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent
Core not included
Door Preparation:
Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
Durability:
D.O.D. Compliant 5220.22M for supplemental access control
Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Standard Finishes:
Satin Chrome 26D (626)
Antique Brass 05 (609)
Two other finishes available
