Yale nexTouch™ Sectional Mortise Keypad Locks

Yale nexTouch keyless electronic door locks combine a modern look with durability that is perfect for your multi-family or mixed-use property, small business, office, retail space, restroom, or other commercial building application. All nexTouch products are easy to use and install, and allow you to manage access with up to 500 unique PIN codes. Yale nexTouch is ANSI/BHMA Grade 1 Certified and weather resistant for outdoor use.

In cylindrical, sectional mortise, and exit trim platforms, nexTouch can upgrade almost any commercial door.

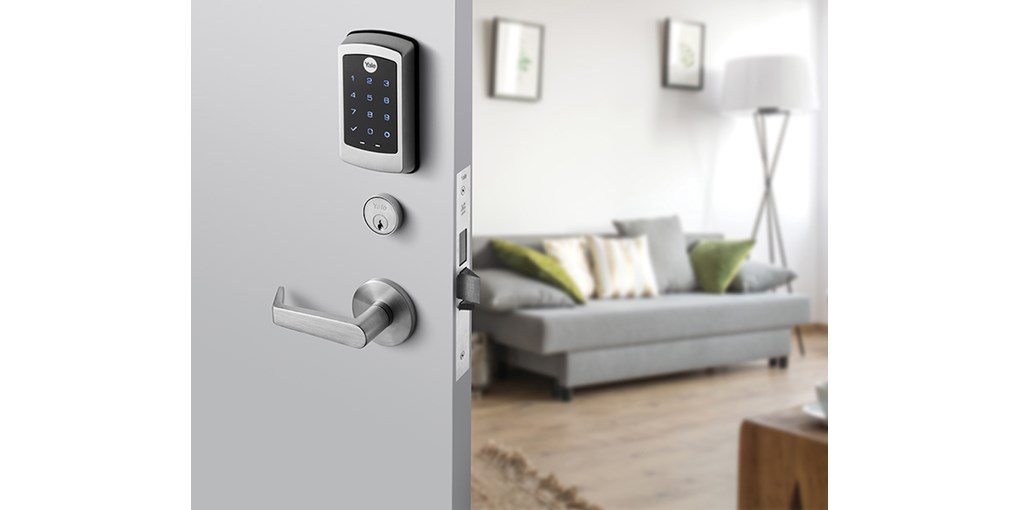

Sectional Mortise

Perfect for multi-family and mixed-use buildings, nexTouch sectional mortise is available in a variety of finishes and decorative lever designs, with an optional deadbolt for additional security.

Technical Specifications:

Door Specifications: Fits into the standard mortise door prep Backset: 2-3/4″ (70mm) standard backset

Door Thickness: 1-3/4″ (44mm) door thickness standard; please specify for other door thicknesses

Handing: Field reversible

Latchbolt: 3/4″ spring latchbolt standard, 1″ throw deadlocking latchbolt optional

Strike: Curved lip strike with 1-1/4” (32 mm) lip length standard

Cylinder: Accepts conventional, interchangeable core, security and high security cylinders, and other manufacturers’ keyway cylinders

ANSI/BHMA: Certified ANSI/BHMA Grade 1

UL/cUL: Functions are UL – cUL Fire Listed for use on fire doors having a rating up to and including 3-hours

Warranty: 1-year electrical warranty; 3-year mechanical and finish warranty

Environmental Specifications: Operating temperature: -40°F to +140°F (-40°C to +60°C) at 95% relative humidity when used with an external power supply

Power Source: 4 AA alkaline batteries (included) with optional hardwire input f or 9VDC external power; 9V battery power backup on keypad

Interface: Capacitive touchscreen or pushbutton keypad.
