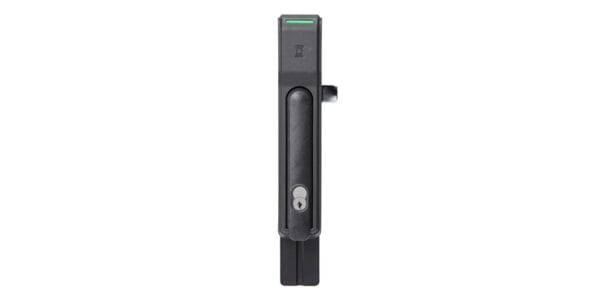

HES KS100 Server Cabinet Lock

Designed to install easily on most swing handle server cabinet doors, the HES KS100 comes standard with locked state monitoring and utilizes an SFIC (Small Format Interchangeable Core) mechanical key override.  An optional extended DPS monitoring sensor can be connected to ensure that the cabinet is closed, locked and secure.

The HES KS100 supports HID multiCLASS SE® contactless credentials and uses local wireless communication between the lock and an Aperio hub to provide real-time monitoring and managed access to server cabinet doors that protect against malicious attacks or tampering.



FCC Part 15 & Industry Canada Compliant

CE RED – Radio Equipment Directive – 2014/53/EU

RoHS Compliant


Estimated Battery Life: 50,000 Cycles

(2) “AA” lithium batteries (included)

AA Lithium Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life.

Battery voltage monitoring

microUSB port for emergency power

Holding Force:

Static strength 350 lbs


Operating Temperature: 32 to 122 F (0 to 50 C)

Tested to meet IP54

Card Technology HID® multiCLASS SE®

High Frequency (13.56 MHz)


–   HID iCLASS SE (SIO-enabled)

–   HID iCLASS® Seos™


–   HID DESFire® EV1 SE


–   DESFire® EV1

Low Frequency (125 kHz)

–   HID Prox®

–   AWID

–   EM4102

–   ioProx

NFC-enabled Mobile Phones


Standard Features

For use with cam-activated swing handle server cabinet applications with a 150 x 25 mm lock prep

2.4 GHz Aperio wireless technology

Supports HID multiCLASS SE® card technologies

Integrates with existing access control systems and ID badges

Audit trail limited by EAC system

LEDs indicate valid/invalid entries; Red/Amber or Green/Amber

Integrated locked state (handle), cam rotation and tamper monitoring

Automatic relock


Black finish

SecuriCare three-year, no fault, no questions asked warranty

Optional Features

 Supports 6 or 7-pin SFIC mechanical key override (sold separately)

–   __ (blank), NO SFIC or blank plastic core (standard)

–   BC, SFIC blank, black plastic core

–   K1, MEDECO X4 SFIC Core, Keyed Differently (DGV Commercial Keyway), with 2 Keys (1 Control & 1 User Key)

–   MK-XXXXXX, MEDECO X4 SFIC Core, Master Keyed (DGV Commercial Keyway), with 2 Keys (1 Control & 1 User Key)

External Door Status Monitoring (KS-DPS)


SFIC MEDECO X4 SFIC cylinder & 2 keys (1 control, 1 user)

SFIC-BC KS SFIC blank, black plastic core

KS-DPS Surface mount DPS (external)

KS-CAM38 CAM: 38MM-1

KS-CAM45 CAM: 45MM-5

EXT-10-ANT Aperio Hub External Antenna (Omni-directional).
