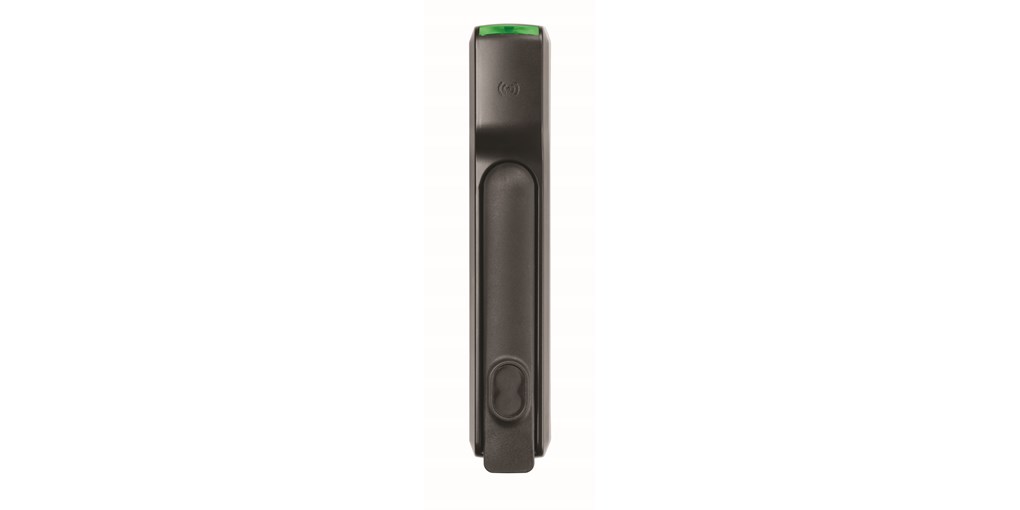

HES KS200 Series Server Cabinet Lock

The HES KS200 Server Cabinet Lock extends access control to protect data center assets from intrusion and expensive downtime, by bringing real-time access control in a single-card system to individual server cabinet doors. Designed to install quickly and easily, on most swing-handle style server rack doors, the KS200 uses Wiegand wiring to integrate seamlessly with existing access control systems and ID badges. It supports a Small Format Interchangeable Core (SFIC) mechanical key override. With an integrated, multi-technology reader, the KS200 provides robust, cost-effective access control to meet strict regulatory compliance and protect data.


FCC Part 15 & Industry Canada (ICES) Compliant

EU/CE Mark (EN 300 & 301)

RoHS Compliant

Patents Pending & D725,992

Operating Temperature 0 – 50C (32 – 122F)

Credentials supported: 125kHz Prox or 13.56 MHz; iCLASS®, iCLASS Elite, iCLASS SEOS™, iCLASS SE, ISO 15693 iCLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, HCE over NFC

Patent #9,708,833 & D725,992

Standard Features

Mutli-technology reader

Integrates easily with existing electronic access control system

Hard wired Wiegand communication

Mechanical key override capable with SFIC (SFIC not included)

Static strength 250 lbs

Lock and DPS status monitoring

Dual voltage 12 or 24 VDC


Designed for standard 25 mm x 150 mm server rack lock openings

Three year limited warranty


12 – 24 VDC +/- 10%

470 mA peak at 12 VDC

245 mA peak at 24 VDC
